Two more gussets?

Do we need two more gussets?

When we first built the truck we installed 4 gussets which we attached to two of our 3×3 square tube cross beams.

When our old truck died, FJM cut off the old artwork and migrated it over to the new truck body. Only two gussets remain.

I believe the artwork is held to the frame by a few inches of welds and two gussets. I am concerned that we may twist the artwork off the truck frame.

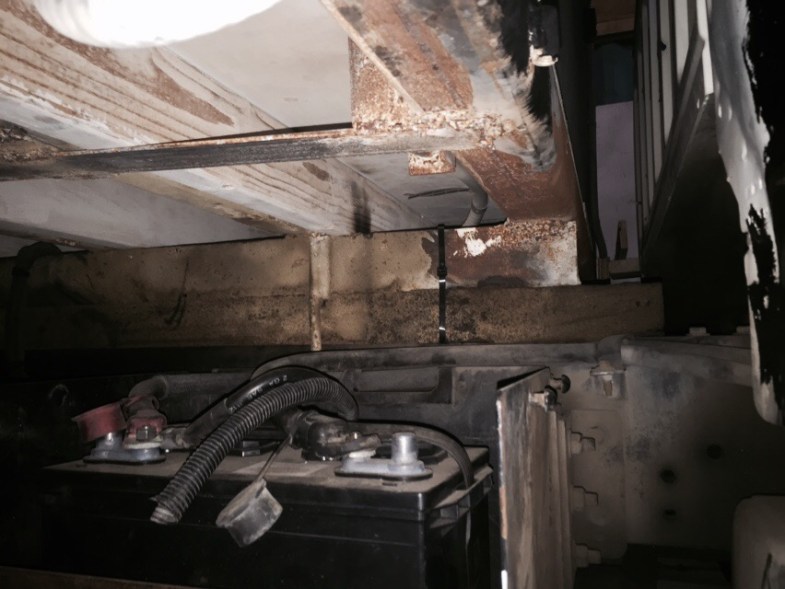

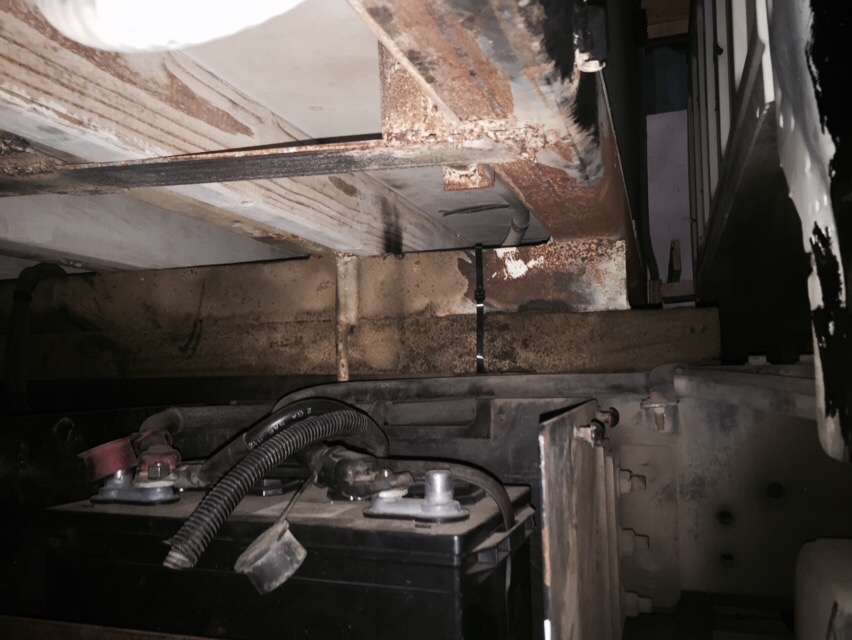

Should we build and install an additional gusset on the front passenger 3×3 square tube? If so, we need to move the battery compartment first.

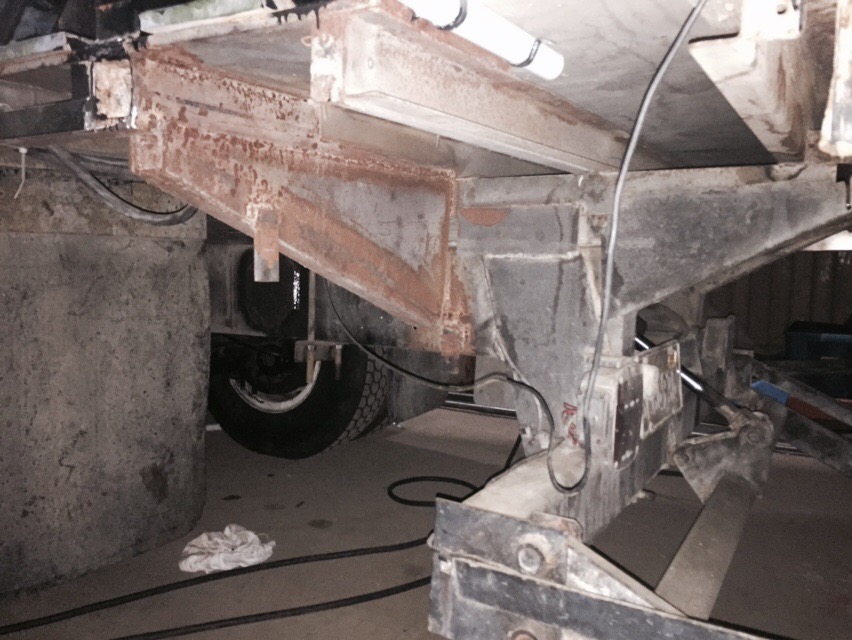

Driver’s rear gusset

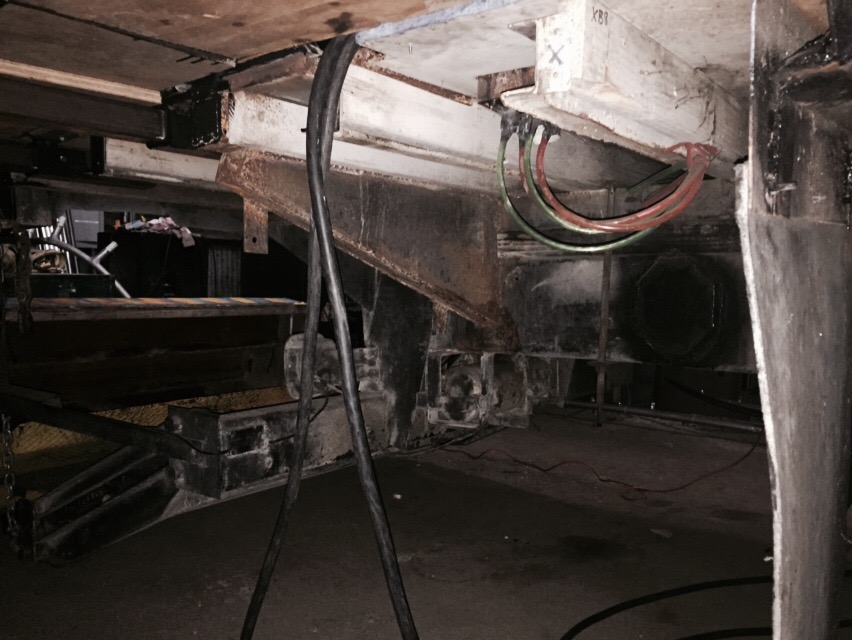

Passenger rear gusset

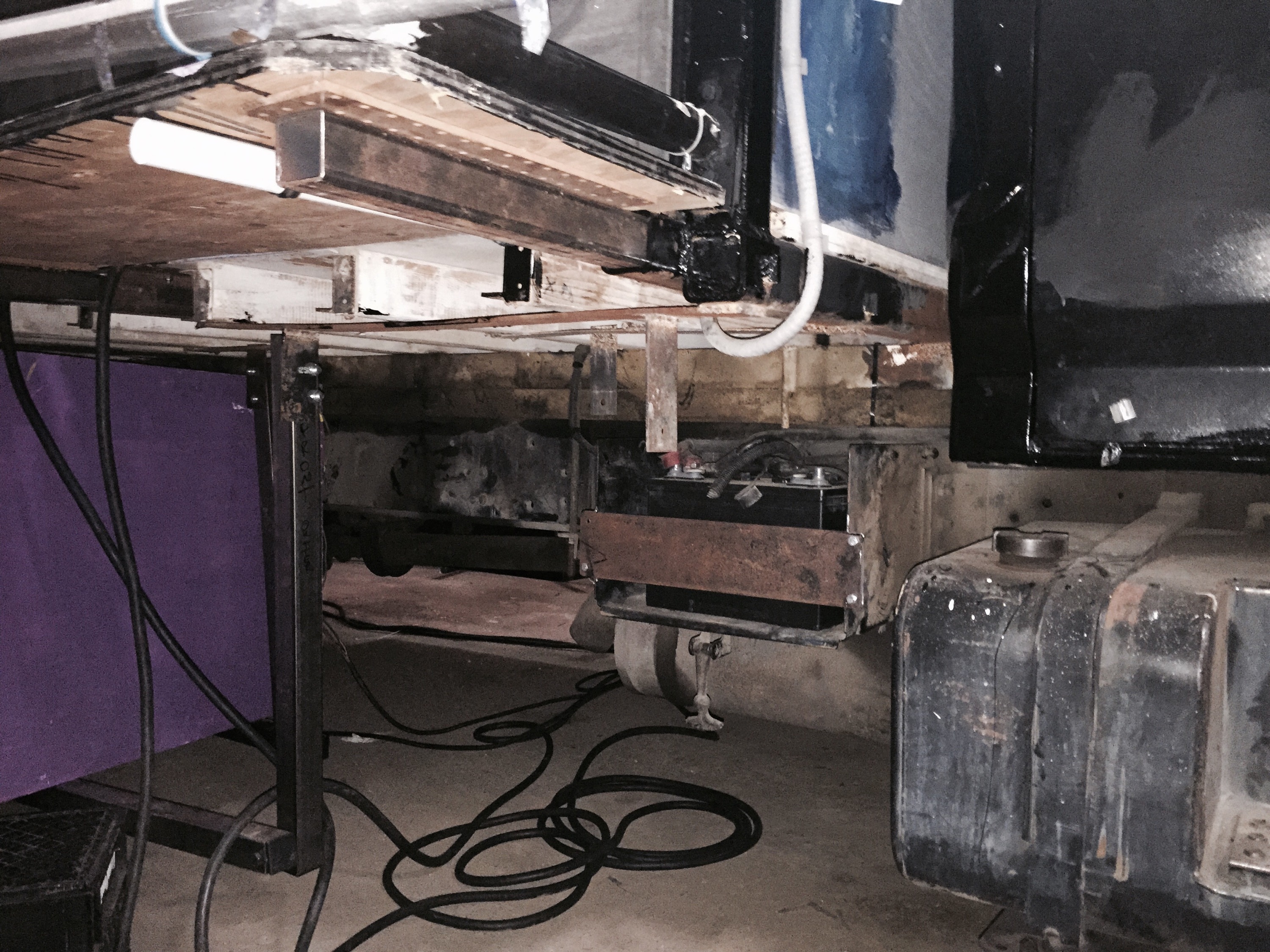

Passenger front 3×3 tube
